Ferries

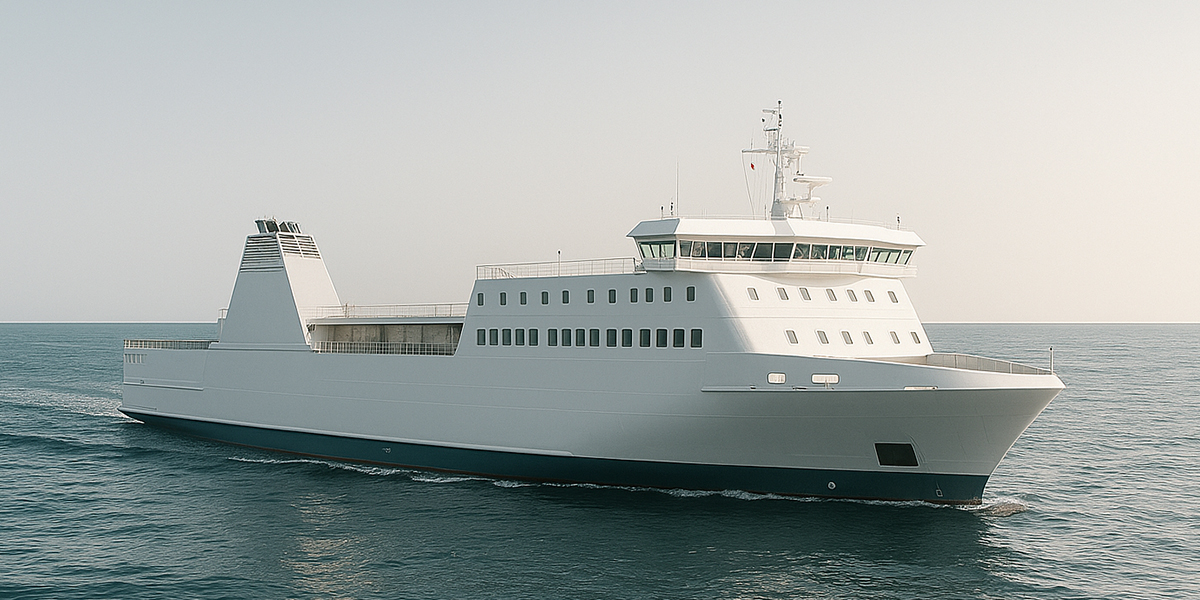

Ferries are used to transport people, vehicles and goods across water bodies. Moderate distances and regular operation favour the use of battery storage in this field of application. The available charging infrastructure has a significant influence on the battery dimensioning. The successful use of fully electric ferries in Scandinavia could be a model for economically attractive and emission-free ferry shipping.

References


Relevance of this field of application

In the area of freewheeling ferries, a distinction can be made between seagoing ferries, i.e. ferries intended for travel on the high seas, and inland ferries. While seagoing ferries need a high cargo share to ensure their economic viability, inland ferries focus on passenger and vehicle transport.1 Like all means of transport that have relied on fossil energy sources to date, ferries should also be operated in a resource-conserving manner in the future and with reduced emissions of greenhouse gases, nitrogen oxides and particulate matter.


In contrast to pure freight shipping, ferry shipping does not primarily aim to maximise the payload for bulk goods and containers. Rather, it is about maximising the transport capacity for passengers and vehicles. Their weight and volume play a comparatively subordinate role in the ship's design - in principle, this leaves more space and more carrying capacity for accommodating batteries. Under certain conditions - manageable routes, regular connections and suitable charging infrastructure - the use of fully electric ferries can be a serious alternative to conventional propulsion concepts.

1 Wikipedia (2020): Fähre.
Link ↗ (accessed 14.01.2021).

The successful use of battery-electric ferries dates back to the beginning of the 20th century. The Rhine ferry between Bonn-Bad Godesberg and Königswinter- Niederdollendorf successfully started operation on 08 July 1908.2 In modern all-electric ferry shipping, as with alternative propulsion concepts in shipping in general, Scandinavia is a pioneer. In 2015, Norway put the world's first battery-electric ferry "Ampere" into operation since the Second World War; in 2019, Denmark followed suit with the largest battery-electric ferry to date, "Ellen".3


Ferries play an important role in local and (supra-)regional passenger transport: on the two Hamburg ferry lines alone, almost 5 million passengers were transported in the first half of 2019, and the trend is rising.4 On Lake Constance, just under 1.2 million passengers used the twelve ferry lines operating there in the period from April to July 2019.5 The most common reasons for ferry travel are leisure and holiday trips. In contrast, the use of ferries for work or business purposes is low.


Use of battery storage


In contrast to other types of ships, the special sailing profile of ferries suggests full electrification. Where the interplay of distance, schedule timing and shore-side power supply allow, batteries can take over the entire energy supply of the ships. The longer the journey, the greater the need for charging time and charging power in port.

2 Bläser, Peter (1992): Eine Betrachtung zur Geschichte des Fährwesens zwischen Bad Godesberg und Niederdollendorf.
Link ↗ (accessed 14.01.2021).

3 Pluta, Werner (2019): Dänemark stellt größte Elektrofähre in Dienst.
Link ↗ (accessed 14.01.2021).

4 Bürgerschaft der Freien Hansestadt Hamburg (2019): Schriftliche Kleine Anfrage des Abgeordneten Dennis Thering (CDU) vom 11.10.19 und Antwort des Senats. Drucksache 21/18641 vom 18.10.2019.
Link ↗ (accessed 14.01.2021).

5 Domgörgen, Franz (2019): Bei Fahrgastzahlen auf Bodensee und Rhein ist dieses Jahr noch Luft nach oben.
Link ↗ (accessed 14.01.2021).

For seagoing ferries, the use of fuel cells is also a promising option. Corresponding concepts also require battery storage to optimise energy efficiency, but are still at the research stage. A pioneering role is played here by the newly established European research project "HySeas III" with eight partners from six countries. Within the framework of this project, the first ocean-going ferry with hydrogen fuel cell propulsion is to be developed.6

One example of hybridisation of conventional combustion engines with battery-electric propulsion is offered by the Swedish shipping company Stena Line, which currently has 14 ferries that draw shore power while in port in Kiel and in four other ports of the route network. The annual savings of 13,000 t CO2 are remarkable.7 If this is related to the average CO2 emissions of 157 g/km of newly registered passenger cars in Germany in 2019, this saving corresponds to around 83 million car kilometres.8 In addition, hybridisation even completely avoids nitrogen oxide and particulate emissions in the ports.7


Performance requirements

Battery storage in ferry shipping must above all be safe and robust. As in shipping in general, fires on ferries must be avoided at all costs, as extinguishing and rescue work, especially on seagoing ferries, is extremely difficult. Therefore, the batteries used should present the lowest possible risks in terms of flammability and explosion.

The ability to charge quickly is a factor that, in combination with a shore-side power supply, has a favourable effect on battery dimensioning and timetable planning: the faster the battery can be charged, the tighter the timetable can be timed and the smaller the batteries can be dimensioned for the given charging possibilities. In ferry operations, several charging and discharging cycles per day can often be assumed. The service life of the batteries, measured in charging cycles, is therefore of central importance for investment security.

With regard to the retrofit market, it must be considered that batteries have to be integrated into already existing hulls. Minimising the space required for the storage units can therefore be of crucial importance for feasibility. This can be achieved by the interplay of deep dischargeability, fast charging capability and high energy density. Equally relevant for the retrofit market are the requirements for the installation site: here, the safety of the battery storage unit determines whether an expensive explosion-proof room is dispensable.


6 Deutsches Zentrum für Luft- und Raumfahrt (DLR) (2018): DLR mit an Bord bei Entwicklung der weltweit ersten hochseefähigen Wasserstoff-Fähre mit Brennstoffzelle.
Link ↗  (accessed 14.01.2021).

7 Stena Line (2020): Stena Line mit Landstromversorgung in Kiel.
Link ↗  (accessed 14.01.2021).

8 Deutsche Energie-Agentur (dena) (2020): Entwicklung der Neuzulassung CO2-effizienter PKW 2019 und 2020.
Link ↗ (accessed 15.01.2021).

Market outlook

The data on the market volume in ferry shipping is extremely fragmented. The Shippax database puts the number of active seagoing ferries at more than 7,300, of which about 1,000 are used on short routes in Scandinavia.9 No freely accessible sources are available for the inland ferry segment.10

With ferries, as with large ships in general, there is no series production. Therefore, the principle of individual planning also applies to battery dimensioning in ferry shipping. Ferries that are already in use provide orientation: The Danish ferry "Ellen" is equipped with a battery storage system of 4.3 MWh capacity. This is used to operate two drive trains with 750 kW power each and two rudders with 250 kW power each. With a charging capacity of 4.4 MW in the port of Fynshav, the battery storage could be fully charged within one hour. With this layout, the Ellen bridges a distance of a good 40 km seven times a day.2

The market volume for the use of battery storage systems results from the retrofit market and new ship construction. A major driver will be local emission control regulations.

9 Shippax (2021): Shippax Online Database.
Link ↗ (accessed 12.01.2021).

10 Probably the most comprehensive database is offered by the fee-based study 360° Research Reports (2020): Global and Japan River Ferries Market Insights, Forecast to 2026.
Link ↗
